Adding Websocket to Server (Lab 06)

Overview

We want to now implement a protocol over which our server and client could communicate with one another. There are of course many options, for example HTTP/1.1 would be perfectly suitable. The thing is about using HTTP/1.1, and thus relying on a classic Request + Response model, is that you need to use something like polling so the client can get updates from the server. This is not only noisy + inelegant, but also creates a lag between the time that you server receives updates from the agent, to when your client receives that info from the server in turn.

This might not be a big deal, but it’s completely unnecessary since the technology to solve this issue exists - websockets.

Websockets Quick Intro

WebSockets provide a communication protocol that establishes a persistent, full-duplex connection between a server and a client over a single TCP connection. Unlike the traditional HTTP request-response model which necessitates client polling for updates, WebSockets allow the server to proactively push data to the client the moment it becomes available. This eliminates the latency and overhead of polling, making WebSockets ideal for real-time applications where immediate data transfer from server to client is crucial.

Also note that (as you will soon see), a Websocket connections starts out as a HTTP/1.1 connection. During the HTTP handshake the client will send a standard HTTP GET request containing an “Upgrade” header. If the server then agrees to this the connection transitions from HTTP to the persistent WebSocket protocol.

Implementation

In order for our server and client to connect with one another we need to furnish both halves with the ability to create and handle websocket connections. In this lab we’ll add it to our server in Go, and in the next lesson we’ll add it to our client in JS.

Library

For our Golang-implementation we’ll use a popular library called Gorilla.

Let’s run the following command in our project’s root directory to add the module.

go get github.com/gorilla/websocket

internal/websocket/wss.go

Now let’s create a new directory and file here - internal/websocket/wss.go.

The first thing we’ll do is define our port as a package-level variable, create a WebSocketServer struct with a single field (for now), and create the accompanying constructor to instantiate this struct.

package websocket

var WebSocketPort = 8080

// WebSocketServer represents a simple WebSocket server
type WebSocketServer struct {
	port int
}

// NewWebSocketServer creates a new WebSocket server
func NewWebSocketServer(port int) *WebSocketServer {
	return &WebSocketServer{
		port: port,
	}
}

Next, we want to create our function that will start our Websocket server. But before we do that, we’re also going to declare something known as a global singleton.

Let’s look at this code first, then I’ll dig into both a bit more.

// Global WebSocket server instance
var GlobalWSServer *WebSocketServer

func StartWebSocketServer() {

	GlobalWSServer = NewWebSocketServer(WebSocketPort)


	go func() {
		err := GlobalWSServer.Start()
		if err != nil {
			log.Fatalf("WebSocket server error: %v", err)
		}
	}()


	time.Sleep(100 * time.Millisecond)

	fmt.Println("WebSocket server is running. You can now connect from the web UI.")

}

Our global singleton var GlobalWSServer *WebSocketServer, which as you can see we then immediately assign the return value of our constructor inside our function, is a pattern used to create a single instance of a struct, and make it available globally. Here this is achieved by the fact that it’s declared at package-level (ie not inside a function scope), and since it’s capitalized, it means its exported (public).

We’re doing this since we only want a single instance of a websocket server, and we want to make it accessible throughout our application.

Then inside our function StartWebSocketServer(), after we’ve called our constructor, we’ll call another function called Start() (which we’ll create soon) in its own goroutine. Notice what seems like an arbitrary sleep, this just introduces a pause to ensure the new function (Start()) has time to execute before our calling function here exits.

Note that this is not great practice for a number of reasons, the correct way to have handled this would have been with channels, but that would be way more complex, and so we use this “quick hack” since it’ll do the job most of the time.

Let’s now create that Start() method.

// Start begins the WebSocket server
func (s *WebSocketServer) Start() error {
	// Set up HTTP handler for the WebSocket endpoint
	http.HandleFunc("/ws", s.handleWebSocket)

	// Start the server
	addr := fmt.Sprintf(":%d", s.port)
	fmt.Printf("WebSocket server starting on %s\n", addr)

	// Start the HTTP server (this is a blocking call)
	return http.ListenAndServe(addr, nil)
}

You can see we’re creating an endpoint at /ws, which will call a handler s.handleWebSocket, which we will create next. The other major event is that we’re creating a HTTP server at the end by calling http.ListenAndServe(). As you likely recall, a websocket connection starts out as an HTTP connection, which we can then upgrade. This will take place inside our handler handleWebsocket, which you can think of as the client’s main “entrypoint” into our server.

Also note however before we create the handler, we’ll also define upgrader, which is a struct from our gorilla package we are instantiating. And we are defining it with the most lax permissions possible, we are essentially saying - always and indiscriminately upgrade to a websocket connection when a client requests it. This is fine in a development environment, but is of course something you’d likely want to address before moving to production.

var upgrader = websocket.Upgrader{
// Allow connections from any origin for development
CheckOrigin: func(r *http.Request) bool {
return true
},
}

// handleWebSocket handles WebSocket connections
func (s *WebSocketServer) handleWebSocket(w http.ResponseWriter, r *http.Request) {
	// Upgrade HTTP connection to WebSocket
	conn, err := upgrader.Upgrade(w, r, nil)
	if err != nil {
		log.Printf("Failed to upgrade connection to WebSocket: %v", err)
		return
	}
	defer conn.Close()

	// Log the new connection
	fmt.Println("New WebSocket connection established")


	// Simple message reading loop
	for {
		messageType, message, err := conn.ReadMessage()
		if err != nil {
			log.Printf("Error reading message: %v", err)
			break
		}

		// Log the received message
		log.Printf("Received message: %s", message)

		// Echo the message back to the client
		err = conn.WriteMessage(messageType, message)
		if err != nil {
			log.Printf("Error sending message: %v", err)
			break
		}
	}
}

Inside the handleWebSocket() function then we immediately call the Upgrade() function on the struct we just created. Then I want you to shift attention to the infinite for loop. This is in some ways similar to our for loop from our agent’s runLoop - we want to enter this state indefinitely. This is of course because as mentioned, our websocket connection is persistent, so here we are essentially just entering into a state to receive and respond at any moment.

For now, I’ve furnished this with a basic echo functionality - meaning whatever we receive from the client, we just send right back. This is just so we have some logic to test whether our websocket connection works, we’ll replace this later with something that makes more sense.

cmd/server/main.go

It might seem like everything is now set up, but there is one final, critical thing we need to do - call our StartWebSocketServer() from our server’s main.go to put the whole wheel in motion.

websocket.StartWebSocketServer()

test

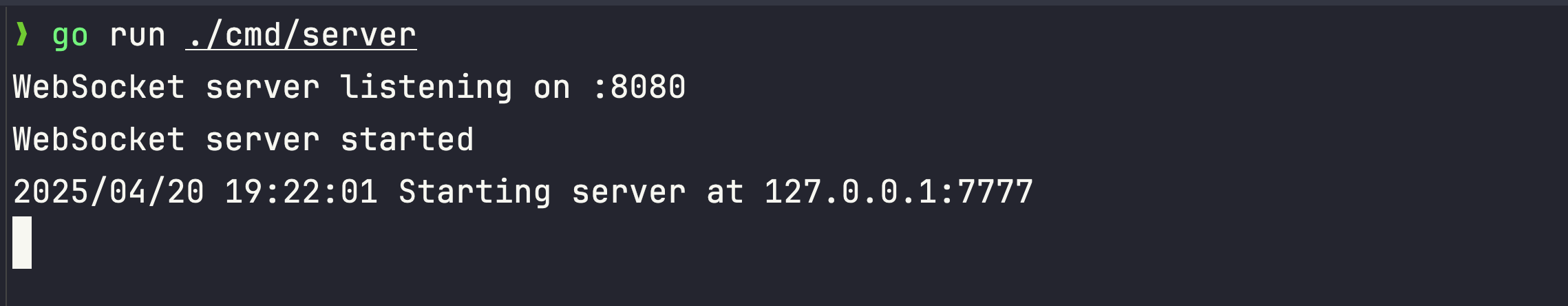

So let’s run our server first, and we should see that it’s listening on 8080.

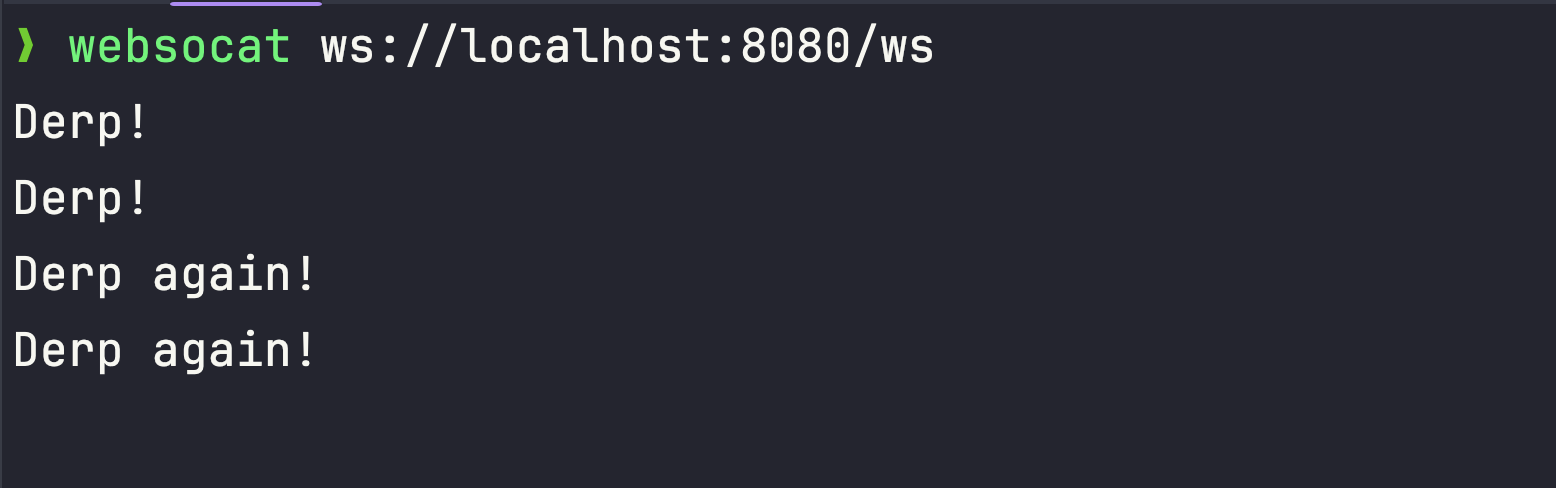

And now, since we don’t yet have a client that connect to the server, I’m going to use websocat to do so.

You can see that we were able to connect, and each time we write something it’s echo’ed right back at us.

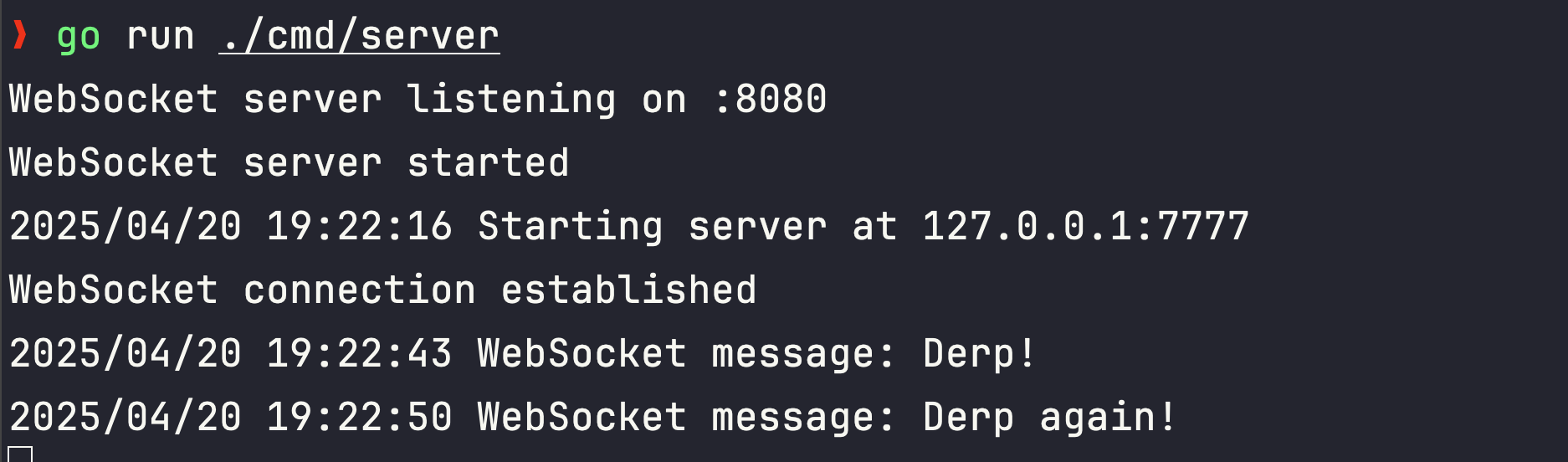

And on the server side we can confirm that we’re receiving this message.
