Basic Listener, Handler, Router (Lab 01)

Overview

In our first module we’ll create the foundation of our server. We’ll first create a Listener (over HTTP/1.1) that will bind to a port to create a socket, accept an incoming request and create a connection instance.

But a connection by itself is not very interesting. And so in order for it to “do something”, we’ll furnish it with a router, which allows us to define routes. You can think of a route simply as defining a method + endpoint in relation to an action. So for example: if a GET request (method) is sent to the root endpoint /, then call the handler RootHandler (action).

cmd/server/main.go

Let’s create our first file, following the convention of placing all our entry points in the cmd folder, we’ll first create a directory called cmd in our root directory, inside of that we’ll create a directory called server, and then finally inside of that we’ll create a file called main.go. This will contain the entrypoint to our server application.

Now in Goland for example this file will automatically be declared to be package server at the top (since it’s parent folder is named server), but since this is intended to be our entrypoint, we want to change this to package main.

Now before we even declare our main function let’s define two global constants - the interface + port we want our listener to bind to.

const serverAddr = "127.0.0.1"
const serverPort = "7777"

For now we will only test locally, hence 127.0.0.1 - this can obviously be changed later were we to communicate across networks. Note that during R&D some people also like using “all interfaces” (0.0.0.0), but in general this is not a great idea as it could allow external hosts to probe.

Let’s now create our main function, and immediately inside of it we’ll create a new router using Chi.

func main() {

	r := chi.NewRouter()

}

Note that Go does have an excellent router within its standard net/http library, and in general the rule of thumb is that if there’s a choice between a standard and 3rd party library you should opt for the former. The reason being simply that standard libraries tend to be more stable. But, sometimes 3rd libraries provide features that you don’t get with standard libraries, in which case you might want to use them.

Keep in mind that not all 3rd party libraries are created equal; factors like their development history, how recently they’ve been updated, the size and activity of their userbase, and whether they frequently introduce breaking changes should influence your choice. For this project, we’ll be using the chi router. I’ve selected chi primarily because it offers fine-grained control over middleware implementation. As our project evolves, particularly in its role as a C2 framework, we will rely heavily on middleware for critical tasks such as authentication, request decoding, data decryption, and payload parsing.

Now if you’ve written the line above you’ll likely immediately see some form of an error, depending on which IDE you are using. The error will say something along the lines of “unresolved reference”, which is just Go’s fancy way of saying it can’t find the import. And that’s because of course, as I just mentioned, this is not a standard library - meaning we need to import it.

So open your terminal, make sure you are in the root directory of our project, and run the following command:

go get -u github.com/go-chi/chi/v5

By the way if you now peek inside of go.mod, you’ll notice chi has been added.

Back in main.go, the unresolved reference error should now be resolved. Next we’d like to set up our routes, but we’re going to define our actual routes in a new file, after which we’ll come back here.

internal/router/routes.go

Let’s create a new folder in the root directory called internal, and inside of that we’ll create router. We’ll create two new files here in - routes.go and handlers.go.

Let’s first dig into routes.go. Following the package router declaration and import statements, let’s create our sole function - SetupRoutes().

func SetupRoutes(r chi.Router) {
	r.Get("/", RootHandler)
}

We can see it takes a sole argument r, which is a chi router instance. And inside our function we’ll create a single route, which will call the RootHandler function whenever a GET request is sent to the root (/) endpoint.

So let’s go ahead and create our RootHandler function inside of handlers.go.

internal/router/handlers.go

func RootHandler(w http.ResponseWriter, r *http.Request) {

	log.Printf("You hit the endpoint: %s\n", r.URL.Path)

    w.Write([]byte("I'm Mister Derp!"))
}

Here we now have two arguments - w http.ResponseWriter, r *http.Request. You’ll always see these two arguments show up together in Go handlers. Think of it like a fundamental conversation: r is the incoming message – it’s the actual request hitting our server, carrying all the details about what the client wants (like the URL they asked for, any data they sent, etc.). Then, w is our way to talk back – it’s the tool we can use to craft and send your response.

We can see inside the handler that when this function is called two things will happen:

• On the server-side: We get a notification that the endpoint was hit + a timestamp (since we are using log and not fmt).
• On the client-side: We receive a simple message - I'm Mister Derp!.

cmd/server/main.go

Since our route and handler are both set up we’re ready to circle back to main and finish our lab. After creating our router instance, let’s call our function that will set up our route.

func main() {

	r := chi.NewRouter()

	router.SetupRoutes(r)
}

Notice that, since it’s part of package router, the keyword router precedes the function call.

Next, though it’s great for allowing fine-grained control that we seperated the server’s interface and port with our two package-level declarations at the top, we now actually need to combine the two since the function we’ll call to create our listener requires them to be combined as a single argument. We can do this quite easily with fmt.Sprintf.

serverAddrPort := fmt.Sprintf("%s:%s", serverAddr, serverPort)

And now just before we go and create our listener let’s just print to console confirming what we’re doing. This might seem like we’re getting our order wrong - should we not first bind to the port and only then print to console? Actually, there’s a good reason for this - we won’t be able to print, or in fact do anything, after we run our listener. This is because at the moment we only have a single goroutine (thread). We’ll discuss and address this in our next section, but for now you’ll just have to trust me that the order is correct.

log.Printf("Starting HTTP server on %s", serverAddrPort)

Note that, in general, I prefer using the log package since it adds time-stamps to the output. If however you did not want those included you can opt for the fmt package.

We can now finally call the net/http library method to run our listener with some basic idiomatic Go error-handling included.

	err := http.ListenAndServe(serverAddrPort, r)
	if err != nil {
		log.Fatalf("Server error: %v", err)
	}

So the entire main() should now look like this

func main() {

	r := chi.NewRouter()

	router.SetupRoutes(r)

	serverAddrPort := fmt.Sprintf("%s:%s", serverAddr, serverPort)

	log.Printf("Starting HTTP server on %s", serverAddrPort)

	err := http.ListenAndServe(serverAddrPort, r)
	if err != nil {
		log.Fatalf("Server error: %v", err)
	}
}

test

First, let’s run our actual server. We could use go build, which would compile our program, and then we could run it separately afterward (2 steps). However, when in a period of rapid development I prefer using go run, which is going to compile, execute, and then delete the binary once we’re done. In other words, it does everything we need in a single command, so for now that’s an expediency I’m happy to leverage.

So in your root project folder run:

go run ./cmd/server

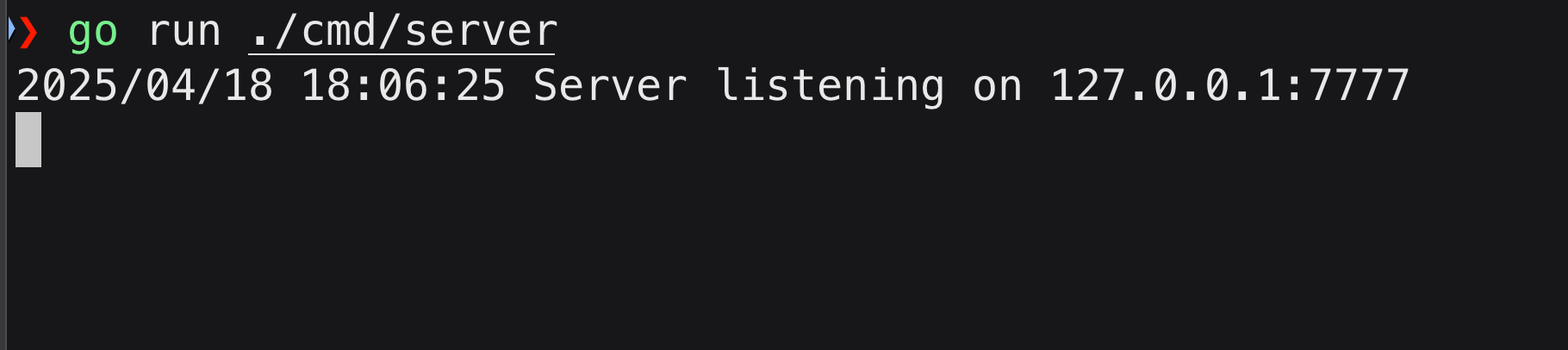

This will look for the entrypoint in that directory, which should run our server, leading to the following output:

We can see that the server application reports that it is running on our chosen interface and port.

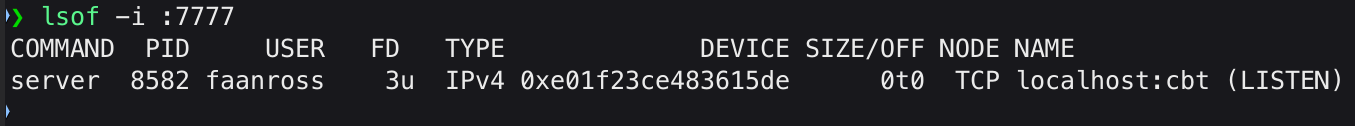

Let’s run lsof to confirm.

And we can see that we’re listening on the chosen port.

Let’s now use curl to hit our endpoint and see if we trigger the expected output.

We can see that we’re able to connect, and we get the expected message on the client side.

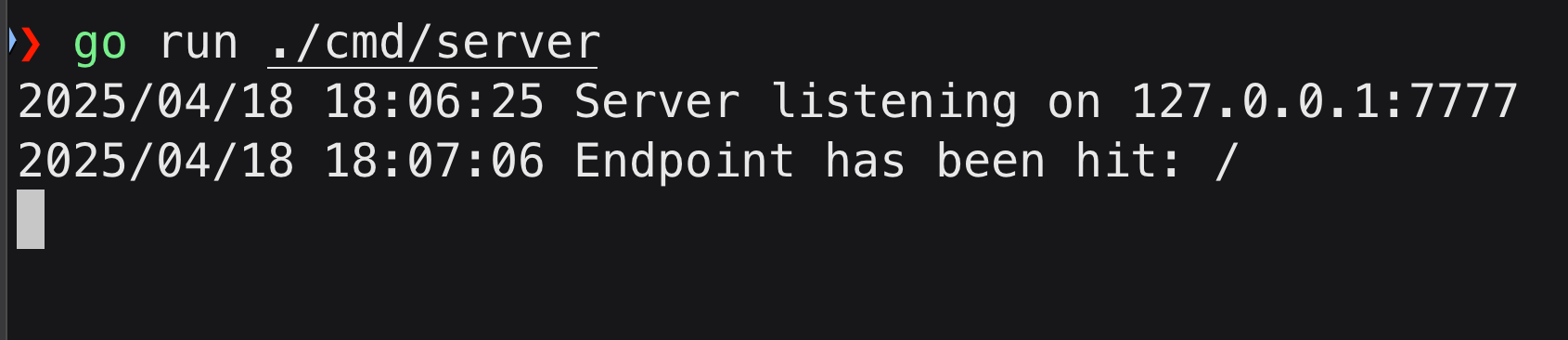

Further, we can see below that on the server side, we also get our expected message.

conclusion

Great, so that’s really our server’s core foundation - listener, router, handler. There are however A LOT of weaknesses in our code here - we don’t have an ability to create multiple listeners, we’re blocking our main thread, we have no mechanism for graceful shutdown etc.

Now unfortunately this was one of those corners that had to be cut when I distilled the course down to 4 hours. However, I did at the very least just give you some introduction to what blocking means and how Goroutines can help us out, so let’s check that out in the next lab.
